Connect Access Token

This is an advanced security funcitonality intended for implementors who would like an extra layer of security on the stream connect sdk. This set-up is required if an implementor intends to use the Fix-Credentials capabilities of the stream connect sdk.

Your Public Key vs Your Secret Key​

If you have opted into using the connect access token for the stream connect sdk, then you will have been provided 2 keys in association to your sdk instance. One key will be made clear to be your sdkToken this is a public key not meant to be hidden. This key will go into the sdkToken key on your StreamConnect initialization object.

StreamConnect({
    sdkToken: "Your-Sdk-Token"
})

The other key you receive is a secret key not meant for public consumption.

WARNING​

Never put your SDK secret key in a place were a user could potential see it. That means never put it in the StreamConnect initialization object.

How to use your Secret Key​

Your secret key is meant to be used to generate temporary tokens which you will then pass to your StreamConnect initialization object.

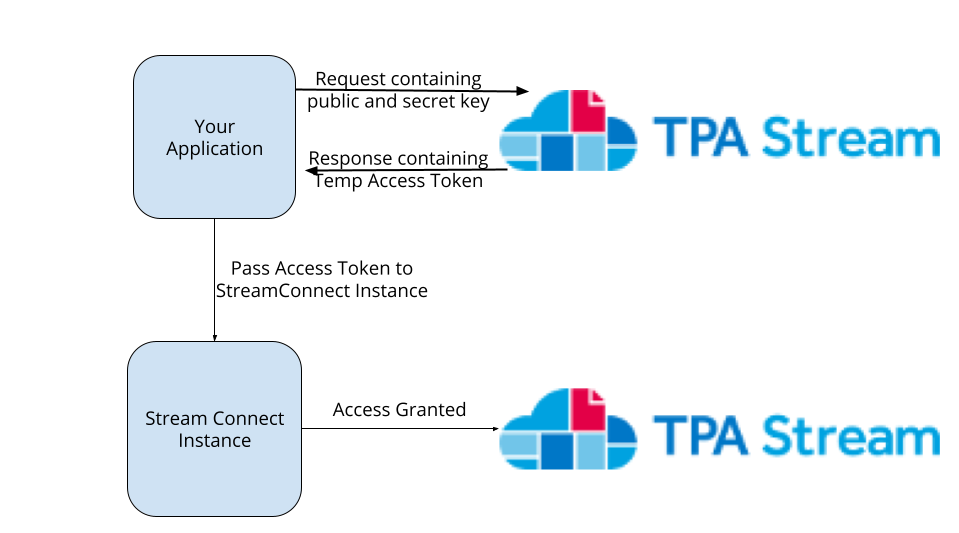

The pattern is as followed. Connect Access Token Pattern

  1. Confirm that your secret key is stored on your application.
  2. Make a POST request to https://app.tpastream.com/api/create-connect-token
    • The Body should have {"connect_access_key": "", "connect_secret_key": ""}
  3. You will recieve back a response with json data "data": "some-super-long-jwt"
  4. Take the value from that response's data key and pump it up to your StreamConnect instance through connectAccessToken

Your init object should look like

StreamConnect({
    "sdkToken": "<Your-Public-Access-Key>",
    "connectAccessToken": "<some-super-long-jwt>"
})

This JWT expires after 1 hour.

Refreshing an expired token (0.8.1+)​

Connect access tokens expire after 1 hour. When a member leaves your SDK-hosting page open past that window and comes back to interact, the next API call fails with a 422 and error_code: "expired_connect_token". The 0.8.1 SDK can recover transparently if you wire a refresh hook — but the refresh has to go through your server, because only your server holds the SDK secret key.

Why this can't be automatic​

The whole point of the connect access token is that the secret key never reaches the browser. If the SDK could mint its own tokens, the secret would have to be in JS code where any user with devtools could read it. So the SDK can't refresh on its own — it can only ask your server for a fresh token.

Step 1: expose a refresh endpoint on your server​

This endpoint does the same POST to /api/create-connect-token that your original page-render did, returning the new JWT to the browser. Gate it with the same auth you use for the member's session — anyone who can call it can extend any member's SDK session indefinitely.

Flask:

from flask import jsonify, request
import requests

@app.route("/api/tpa-sdk-refresh-token", methods=["POST"])
@your_login_required
def tpa_sdk_refresh_token():
    response = requests.post(
        "https://app.tpastream.com/api/create-connect-token",
        json={
            "connect_access_key": app.config["TPA_SDK_PUBLIC_KEY"],
            "connect_secret_key": app.config["TPA_SDK_SECRET_KEY"],
        },
        timeout=10,
    )
    response.raise_for_status()
    return jsonify(token=response.json()["data"])

Express:

app.post('/api/tpa-sdk-refresh-token', yourLoginRequired, async (req, res) => {
  const r = await fetch('https://app.tpastream.com/api/create-connect-token', {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify({
      connect_access_key: process.env.TPA_SDK_PUBLIC_KEY,
      connect_secret_key: process.env.TPA_SDK_SECRET_KEY,
    }),
  });
  if (!r.ok) return res.status(502).json({ error: 'refresh failed' });
  const { data } = await r.json();
  res.json({ token: data });
});

ASP.NET Core (C#):

[Authorize] // gate with your member-session auth
[HttpPost("api/tpa-sdk-refresh-token")]
public async Task<IActionResult> TpaSdkRefreshToken(
    [FromServices] IHttpClientFactory clientFactory,
    [FromServices] IConfiguration config)
{
    var http = clientFactory.CreateClient();
    var payload = new
    {
        connect_access_key = config["TpaSdk:PublicKey"],
        connect_secret_key = config["TpaSdk:SecretKey"],
    };
    using var response = await http.PostAsJsonAsync(
        "https://app.tpastream.com/api/create-connect-token", payload);
    if (!response.IsSuccessStatusCode)
        return StatusCode(502, new { error = "refresh failed" });
    var doc = await response.Content.ReadFromJsonAsync<JsonElement>();
    return Ok(new { token = doc.GetProperty("data").GetString() });
}

The pattern is the same in every backend: an authenticated POST that proxies to app.tpastream.com/api/create-connect-token with your stored secret + public keys. PHP, Ruby, Go, Java — same shape, swap the HTTP client for whatever's idiomatic.

Step 2: wire connectAccessTokenRefreshFn on the SDK​

StreamConnect({
  // ... your existing config ...
  connectAccessToken: '<initial-token-from-page-render>',
  connectAccessTokenRefreshFn: async () => {
    const r = await fetch('/api/tpa-sdk-refresh-token', {
      method: 'POST',
      credentials: 'same-origin',
    });
    if (!r.ok) throw new Error(`refresh failed: ${r.status}`);
    return (await r.json()).token;
  },
});

When the SDK detects an expired token, it calls this function, swaps the new value into its X-Connect-Access-Token header, and retries the failed request — the member sees no error. Multiple parallel failed requests share a single refresh attempt (stampede guard) so your endpoint gets called once per expiry cycle, not once per request.

Fallback: notification-only​

If you can't add a refresh endpoint (legacy host, static site, etc.), wire onConnectAccessTokenExpired instead. The SDK will surface the expiry to your callback (and dispatch a tpastream-connect-token-expired CustomEvent on window) so you can prompt the member to reload:

StreamConnect({
  // ... your existing config ...
  onConnectAccessTokenExpired: () => {
    if (confirm('Your session has expired. Reload to continue?')) {
      window.location.reload();
    }
  },
});

The reload triggers a fresh page render, which mints a fresh connectAccessToken server-side. The trade-off versus the refresh hook is that the member loses any in-progress credential entry.

Mid-session token refresh (Patient Access API redirect)​

After a Patient Access API redirect completes, app.tpastream.com appends a fresh ?accessToken=... query parameter to the return URL. The 0.8 SDK reads it automatically on init and uses it for the rest of the session, overriding any stale connectAccessToken baked into the page. The token is stripped from the URL via history.replaceState so it doesn't end up in the browser history or address bar.

Note: replaceState runs after the SDK script loads, so any resources or third-party scripts loaded by the host page before the SDK runs (analytics beacons, ad pixels, anything in the <head> that fires its own requests) can still see the original token-bearing URL in the Referer header. If your host page loads anything sensitive before the SDK, either move it after the SDK script tag or strip the accessToken query param server-side before serving the post-redirect page.

See Client Usage > Redirect query parameters for the full mechanics.
